peroxide/structure/ad.rs
1//! Taylor mode forward automatic differentiation with const-generic `Jet<N>` type
2//!
3//! ## Overview
4//!
5//! This module provides a const-generic `Jet<N>` struct for Taylor-mode forward AD
6//! of arbitrary order N. The struct stores **normalized** Taylor coefficients:
7//!
8//! ```text
9//! Jet { value: c_0, deriv: [c_1, c_2, ..., c_N] }
10//! ```
11//!
12//! where $c_k = f^{(k)}(a) / k!$ is the $k$-th normalized Taylor coefficient evaluated
13//! at the expansion point $a$. This normalization eliminates binomial coefficients
14//! from all arithmetic recurrences.
15//!
16//! ## Type Aliases
17//!
18//! * `Dual = Jet<1>` — first-order forward AD (value + first derivative)
19//! * `HyperDual = Jet<2>` — second-order forward AD (value + first + second derivative)
20//!
21//! ## Constructors
22//!
23//! * `Jet::var(x)` — independent variable at point x (deriv\[0\] = 1)
24//! * `Jet::constant(x)` — constant (all derivatives zero)
25//! * `Jet::new(value, deriv)` — raw constructor
26//! * `ad0(x)` — `Jet<0>` constant (backward compat)
27//! * `ad1(x, dx)` — `Jet<1>` with first derivative (backward compat)
28//! * `ad2(x, dx, ddx)` — `Jet<2>` with first and second derivatives (backward compat)
29//!
30//! ## Accessors
31//!
32//! * `.value()` / `.x()` — $f(a)$
33//! * `.dx()` — $f'(a)$
34//! * `.ddx()` — $f''(a)$
35//! * `.derivative(k)` — $f^{(k)}(a)$ (raw factorial-scaled derivative)
36//! * `.taylor_coeff(k)` — normalized Taylor coefficient $c_k$
37//!
38//! ## Implemented Operations
39//!
40//! * `Add, Sub, Mul, Div` (Jet op Jet, Jet op f64, f64 op Jet)
41//! * `Neg`
42//! * `ExpLogOps`: `exp`, `ln`, `log`, `log2`, `log10`
43//! * `PowOps`: `powi`, `powf`, `pow`, `sqrt`
44//! * `TrigOps`: `sin_cos`, `sin`, `cos`, `tan`, `sinh`, `cosh`, `tanh`,
45//! `asin`, `acos`, `atan`, `asinh`, `acosh`, `atanh`
46//!
47//! ## Usage
48//!
49//! ```
50//! extern crate peroxide;
51//! use peroxide::fuga::*;
52//!
53//! fn main() {
54//! // First derivative of f(x) = x^2 at x = 2
55//! let x = Jet::<1>::var(2.0);
56//! let y = x.powi(2);
57//! assert_eq!(y.value(), 4.0);
58//! assert_eq!(y.dx(), 4.0); // f'(2) = 2*2 = 4
59//!
60//! // Second derivative using HyperDual
61//! let x2 = HyperDual::new(2.0, [1.0, 0.0]);
62//! let y2 = x2.powi(2);
63//! assert_eq!(y2.value(), 4.0);
64//! assert_eq!(y2.dx(), 4.0); // f'(2) = 4
65//! assert_eq!(y2.ddx(), 2.0); // f''(2) = 2
66//! }
67//! ```
68//!
69//! ### Higher-order derivatives
70//!
71//! ```
72//! extern crate peroxide;
73//! use peroxide::fuga::*;
74//!
75//! fn main() {
76//! // 5th derivative of x^5 at x = 1
77//! let x = Jet::<5>::var(1.0);
78//! let y = x.powi(5);
79//! assert_eq!(y.derivative(5), 120.0); // 5! = 120
80//! }
81//! ```
82//!
83//! ### Using the `#[ad_function]` macro
84//!
85//! ```
86//! extern crate peroxide;
87//! use peroxide::fuga::*;
88//!
89//! #[ad_function]
90//! fn f(x: f64) -> f64 {
91//! x.sin() + x.powi(2)
92//! }
93//!
94//! fn main() {
95//! // f_grad and f_hess are generated automatically
96//! let grad = f_grad(1.0); // f'(1) = cos(1) + 2
97//! let hess = f_hess(1.0); // f''(1) = -sin(1) + 2
98//!
99//! assert!((grad - (1.0_f64.cos() + 2.0)).abs() < 1e-10);
100//! assert!((hess - (-1.0_f64.sin() + 2.0)).abs() < 1e-10);
101//! }
102//! ```
103//!
104//! ### Generic functions with `Real` trait
105//!
106//! ```
107//! extern crate peroxide;
108//! use peroxide::fuga::*;
109//!
110//! fn quadratic<T: Real>(x: T) -> T {
111//! x.powi(2) + x * 3.0 + T::from_f64(1.0)
112//! }
113//!
114//! fn main() {
115//! // Works with both f64 and AD (= Jet<2>)
116//! let val = quadratic(2.0_f64); // 11.0
117//! let jet = quadratic(AD1(2.0, 1.0));
118//! assert_eq!(val, 11.0); // f(2) = 4 + 6 + 1
119//! assert_eq!(jet.value(), 11.0); // f(2) = 11
120//! assert_eq!(jet.dx(), 7.0); // f'(2) = 2*2 + 3
121//! }
122//! ```
123//!
124//! ### Jacobian computation
125//!
126//! ```
127//! extern crate peroxide;
128//! use peroxide::fuga::*;
129//!
130//! fn main() {
131//! // Jacobian of f(x,y) = [x - y, x + 2*y] at (1, 1)
132//! let x = vec![1.0, 1.0];
133//! let j = jacobian(f, &x);
134//! j.print();
135//! // c[0] c[1]
136//! // r[0] 1 -1
137//! // r[1] 1 2
138//! }
139//!
140//! fn f(xs: &Vec<AD>) -> Vec<AD> {
141//! let x = xs[0];
142//! let y = xs[1];
143//! vec![x - y, x + 2.0 * y]
144//! }
145//! ```
146//!
147//! ### Backward-compatible constructors
148//!
149//! ```
150//! extern crate peroxide;
151//! use peroxide::fuga::*;
152//!
153//! fn main() {
154//! // These work just like the old AD1/AD2 constructors
155//! let a = AD1(2.0, 1.0); // value=2, f'=1
156//! let b = AD2(4.0, 4.0, 2.0); // x^2 at x=2
157//!
158//! assert_eq!(a.x(), 2.0);
159//! assert_eq!(b.dx(), 4.0);
160//! assert_eq!(b.ddx(), 2.0);
161//!
162//! // New constructors (equivalent)
163//! let c = Jet::<1>::var(2.0); // Same as Dual var at x=2
164//! assert_eq!(c.dx(), 1.0); // dx/dx = 1 for independent variable
165//! }
166//! ```
167//!
168//! ## Accuracy: Jet\<N\> vs Finite Differences
169//!
170//! `Jet<N>` computes derivatives to **machine precision** because it propagates
171//! exact Taylor coefficients through the computation graph. In contrast, finite
172//! difference methods suffer from both truncation and cancellation errors that
173//! worsen rapidly at higher derivative orders.

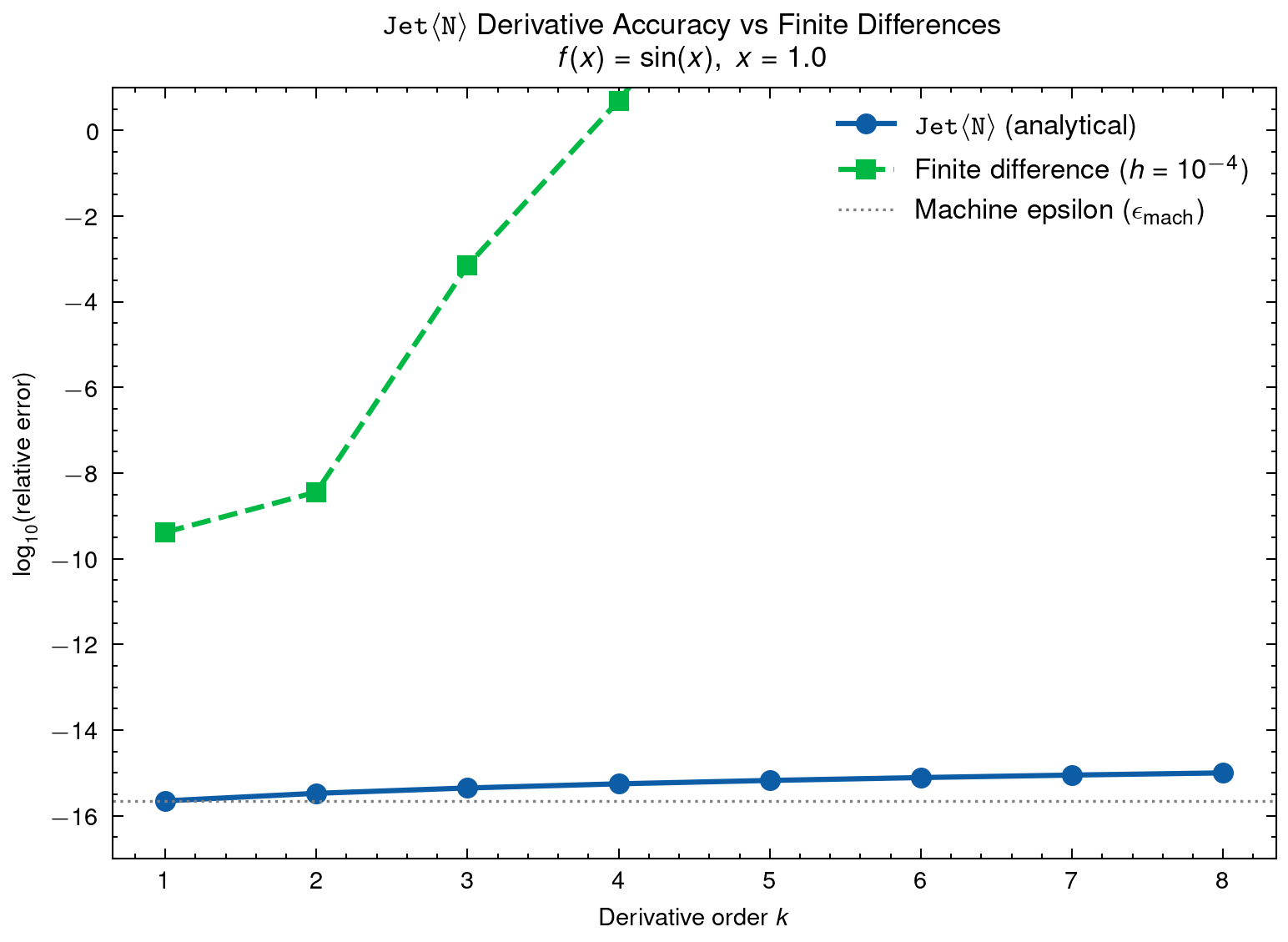

174//!
175//! The plot below compares the relative error of `Jet<N>` against central finite
176//! differences ($h = 10^{-4}$) for $f(x) = \sin(x)$ at $x = 1.0$, across derivative orders 1–8:
177//!
178//!
179//!
180//! `Jet<N>` (blue) stays at $\sim 10^{-15}$ (machine epsilon) for all orders,
181//! while finite differences (green) degrade from $\sim 10^{-9}$ at order 1 to $> 10^{0}$ at order 4.
182//!
183//! ## Taylor Series Convergence
184//!
185//! Since `Jet<N>` stores normalized Taylor coefficients $c_k = f^{(k)}(a)/k!$,
186//! you can directly reconstruct the Taylor polynomial of any function:
187//!
188//! $$T_N(x) = c_0 + c_1 (x-a) + c_2 (x-a)^2 + \cdots + c_N (x-a)^N$$

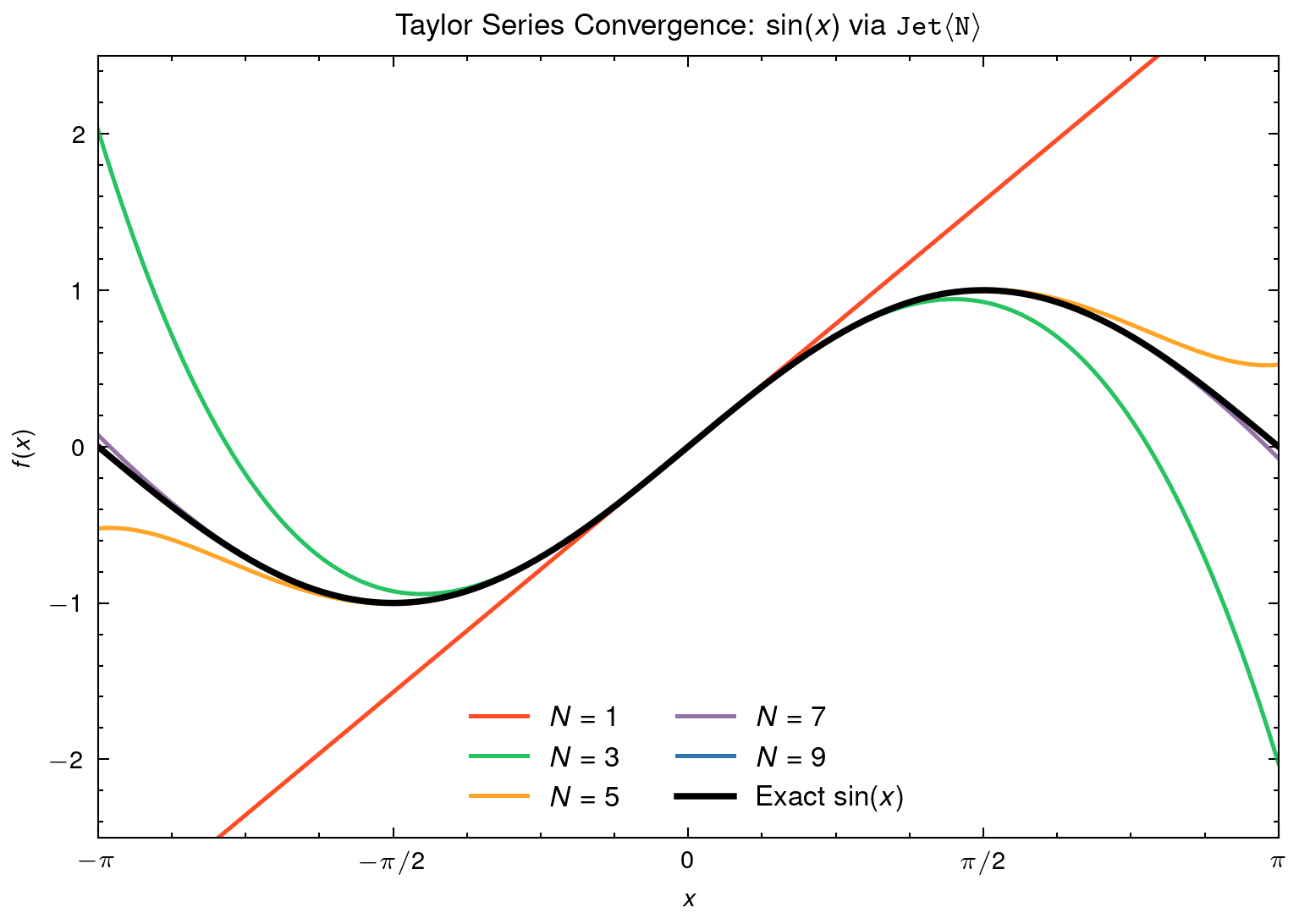

189//!
190//! The plot below shows the Taylor polynomial of $\sin(x)$ around $x = 0$ for
191//! increasing truncation orders $N = 1, 3, 5, 7, 9$:
192//!
193//!
194//!
195//! As $N$ increases, the Taylor polynomial converges to the exact $\sin(x)$ curve
196//! over a wider interval.
197
198use crate::traits::{fp::FPVector, math::Vector, stable::StableFn, sugar::VecOps};
199use peroxide_num::{ExpLogOps, PowOps, TrigOps};
200use std::ops::{Add, Div, Index, IndexMut, Mul, Neg, Sub};
201
202// =============================================================================
203// Jet struct
204// =============================================================================
205
206/// Const-generic Taylor-mode forward AD type.
207///
208/// Stores the value and $N$ normalized Taylor coefficients:
209/// - `value` = $f(a) = c_0$
210/// - `deriv[k]` = $f^{(k+1)}(a) / (k+1)! = c_{k+1}$
211///
212/// So `Jet<1>` stores $(c_0, c_1) = (f(a),\, f'(a))$,
213/// and `Jet<2>` stores $(c_0, c_1, c_2) = (f(a),\, f'(a),\, f''(a)/2)$.
214#[derive(Debug, Clone, Copy, PartialEq)]
215pub struct Jet<const N: usize> {
216 value: f64,
217 deriv: [f64; N],
218}
219
220impl<const N: usize> Jet<N> {
221 /// Create a `Jet` from raw value and normalized Taylor coefficient array.
222 pub fn new(value: f64, deriv: [f64; N]) -> Self {
223 Self { value, deriv }
224 }
225
226 /// Create an independent variable jet at point `x`.
227 /// Sets `deriv[0] = 1.0` (the 1st normalized coefficient), rest zero.
228 ///
229 /// # Examples
230 /// ```
231 /// use peroxide::fuga::*;
232 ///
233 /// let x = Jet::<2>::var(3.0);
234 /// assert_eq!(x.value(), 3.0);
235 /// assert_eq!(x.dx(), 1.0); // dx/dx = 1
236 /// assert_eq!(x.ddx(), 0.0); // d²x/dx² = 0
237 /// ```
238 pub fn var(x: f64) -> Self {
239 let mut deriv = [0.0f64; N];
240 if N >= 1 {
241 deriv[0] = 1.0;
242 }
243 Self { value: x, deriv }
244 }
245
246 /// Create a constant jet (all derivatives zero).
247 pub fn constant(x: f64) -> Self {
248 Self {
249 value: x,
250 deriv: [0.0f64; N],
251 }
252 }
253
254 /// The function value $f(a)$.
255 #[inline]
256 pub fn value(&self) -> f64 {
257 self.value
258 }
259
260 /// Alias for `value()` — backward compatibility.
261 #[inline]
262 pub fn x(&self) -> f64 {
263 self.value
264 }
265
266 /// First derivative $f'(a)$.
267 ///
268 /// # Examples
269 /// ```
270 /// use peroxide::fuga::*;
271 ///
272 /// let x = Jet::<1>::var(2.0);
273 /// let y = x.powi(3); // x^3
274 /// assert_eq!(y.dx(), 12.0); // 3*x^2 = 3*4 = 12
275 /// ```
276 #[inline]
277 pub fn dx(&self) -> f64 {
278 if N >= 1 {
279 self.deriv[0]
280 } else {
281 0.0
282 }
283 }
284
285 /// Second derivative $f''(a)$.
286 ///
287 /// # Examples
288 /// ```
289 /// use peroxide::fuga::*;
290 ///
291 /// let x = Jet::<2>::var(2.0);
292 /// let y = x.powi(3); // x^3
293 /// assert_eq!(y.ddx(), 12.0); // 6*x = 6*2 = 12
294 /// ```
295 #[inline]
296 pub fn ddx(&self) -> f64 {
297 if N >= 2 {
298 self.deriv[1] * 2.0
299 } else {
300 0.0
301 }
302 }
303
304 /// Returns $f^{(\mathrm{order})}(a)$, the raw (factorial-scaled) derivative of given order.
305 /// - order = 0: $f(a)$
306 /// - order = 1: $f'(a)$ = `deriv[0]`
307 /// - order = k: $f^{(k)}(a)$ = `deriv[k-1]` $\times\, k!$
308 ///
309 /// Internally computes `taylor_coeff(k)` $\times\, k!$.
310 ///
311 /// # Examples
312 /// ```
313 /// use peroxide::fuga::*;
314 ///
315 /// let x = Jet::<3>::var(0.0);
316 /// let y = x.exp();
317 /// // All derivatives of exp at 0 are 1
318 /// assert!((y.derivative(0) - 1.0).abs() < 1e-15);
319 /// assert!((y.derivative(1) - 1.0).abs() < 1e-15);
320 /// assert!((y.derivative(2) - 1.0).abs() < 1e-15);
321 /// assert!((y.derivative(3) - 1.0).abs() < 1e-15);
322 /// ```
323 pub fn derivative(&self, order: usize) -> f64 {
324 if order == 0 {
325 self.value
326 } else if order <= N {
327 self.deriv[order - 1] * factorial(order) as f64
328 } else {
329 0.0
330 }
331 }
332
333 /// Returns the $k$-th normalized Taylor coefficient $c_k = f^{(k)}(a) / k!$.
334 /// - $k = 0$: $c_0 = f(a)$
335 /// - $k \ge 1$: $c_k$ = `deriv[k-1]`
336 pub fn taylor_coeff(&self, k: usize) -> f64 {
337 self.coeff(k)
338 }
339
340 /// Internal: get the $k$-th Taylor coefficient $c_k$.
341 #[inline]
342 fn coeff(&self, k: usize) -> f64 {
343 if k == 0 {
344 self.value
345 } else if k <= N {
346 self.deriv[k - 1]
347 } else {
348 0.0
349 }
350 }
351
352 /// Internal: set the $k$-th Taylor coefficient $c_k$.
353 #[inline]
354 fn set_coeff(&mut self, k: usize, v: f64) {
355 if k == 0 {
356 self.value = v;
357 } else if k <= N {
358 self.deriv[k - 1] = v;
359 }
360 }
361
362 /// Internal: create a zero jet.
363 #[inline]
364 fn zero() -> Self {
365 Self {
366 value: 0.0,
367 deriv: [0.0f64; N],
368 }
369 }
370}
371
372// =============================================================================
373// Type aliases
374// =============================================================================
375
376/// First-order forward AD: stores value and first derivative.
377pub type Dual = Jet<1>;
378
379/// Second-order forward AD: stores value, first derivative, and second derivative $/\, 2!$.
380pub type HyperDual = Jet<2>;
381
382// =============================================================================
383// Compatibility constructors
384// =============================================================================
385
386/// Create a `Jet<0>` constant (zero-order, value only).
387#[inline]
388pub fn ad0(x: f64) -> Jet<0> {
389 Jet { value: x, deriv: [] }
390}
391
392/// Create a `Jet<1>` with value and first derivative.
393/// `dx` is the raw first derivative $f'(a)$; stored as `deriv[0]` $= dx / 1! = dx$.
394///
395/// # Arguments
396/// * `x` - function value $f(a)$
397/// * `dx` - first derivative $f'(a)$
398///
399/// # Examples
400/// ```
401/// use peroxide::fuga::*;
402///
403/// let j = ad1(2.0, 1.0); // variable x at x=2
404/// assert_eq!(j.value(), 2.0);
405/// assert_eq!(j.dx(), 1.0);
406/// ```
407#[inline]
408pub fn ad1(x: f64, dx: f64) -> Jet<1> {
409 Jet {
410 value: x,
411 deriv: [dx],
412 }
413}
414
415/// Create a `Jet<2>` with value, first derivative, and second derivative.
416/// `ddx` is the raw second derivative $f''(a)$; stored internally as `deriv[1]` $= f''(a) / 2!$.
417///
418/// # Arguments
419/// * `x` - function value $f(a)$
420/// * `dx` - first derivative $f'(a)$
421/// * `ddx` - second derivative $f''(a)$
422///
423/// # Examples
424/// ```
425/// use peroxide::fuga::*;
426///
427/// // Represent x^2 at x=2: f=4, f'=4, f''=2
428/// let j = ad2(4.0, 4.0, 2.0);
429/// assert_eq!(j.value(), 4.0);
430/// assert_eq!(j.dx(), 4.0);
431/// assert_eq!(j.ddx(), 2.0);
432/// ```
433#[inline]
434pub fn ad2(x: f64, dx: f64, ddx: f64) -> Jet<2> {
435 Jet {
436 value: x,
437 deriv: [dx, ddx / 2.0],
438 }
439}
440
441// =============================================================================
442// Helper: factorial
443// =============================================================================
444
445#[inline]
446fn factorial(n: usize) -> u64 {
447 let mut result = 1u64;
448 for i in 2..=(n as u64) {
449 result *= i;
450 }
451 result
452}
453
454// =============================================================================
455// Display
456// =============================================================================
457
458impl<const N: usize> std::fmt::Display for Jet<N> {
459 fn fmt(&self, f: &mut std::fmt::Formatter<'_>) -> std::fmt::Result {
460 write!(f, "Jet({}", self.value)?;
461 if N > 0 {
462 write!(f, "; ")?;
463 for (i, d) in self.deriv.iter().enumerate() {
464 if i > 0 {
465 write!(f, ", ")?;
466 }
467 write!(f, "{}", d)?;
468 }
469 }
470 write!(f, ")")
471 }
472}
473
474// =============================================================================
475// PartialOrd (compare by value only)
476// =============================================================================
477
478impl<const N: usize> PartialOrd for Jet<N> {
479 fn partial_cmp(&self, other: &Self) -> Option<std::cmp::Ordering> {
480 self.value.partial_cmp(&other.value)
481 }
482}
483
484// =============================================================================
485// From conversions
486// =============================================================================
487
488impl<const N: usize> From<f64> for Jet<N> {
489 fn from(v: f64) -> Self {
490 Self::constant(v)
491 }
492}
493
494impl<const N: usize> From<Jet<N>> for f64 {
495 fn from(j: Jet<N>) -> f64 {
496 j.value
497 }
498}
499
500// =============================================================================
501// Index / IndexMut (backward compat: index 0 = value, index k >= 1 = deriv[k-1])
502// =============================================================================
503
504impl<const N: usize> Index<usize> for Jet<N> {
505 type Output = f64;
506
507 fn index(&self, index: usize) -> &Self::Output {
508 if index == 0 {
509 &self.value
510 } else if index <= N {
511 &self.deriv[index - 1]
512 } else {
513 panic!("Jet<{}> index {} out of bounds (max index = {})", N, index, N)
514 }
515 }
516}
517
518impl<const N: usize> IndexMut<usize> for Jet<N> {
519 fn index_mut(&mut self, index: usize) -> &mut Self::Output {
520 if index == 0 {
521 &mut self.value
522 } else if index <= N {
523 &mut self.deriv[index - 1]
524 } else {
525 panic!("Jet<{}> index {} out of bounds (max index = {})", N, index, N)
526 }
527 }
528}
529
530// =============================================================================
531// Neg
532// =============================================================================
533
534impl<const N: usize> Neg for Jet<N> {
535 type Output = Self;
536
537 fn neg(self) -> Self::Output {
538 let mut z = self;
539 z.value = -z.value;
540 for d in z.deriv.iter_mut() {
541 *d = -*d;
542 }
543 z
544 }
545}
546
547// =============================================================================
548// Add, Sub, Mul, Div for Jet<N> op Jet<N>
549// =============================================================================
550
551impl<const N: usize> Add<Jet<N>> for Jet<N> {
552 type Output = Self;
553
554 fn add(self, rhs: Jet<N>) -> Self::Output {
555 let mut z = self;
556 z.value += rhs.value;
557 for i in 0..N {
558 z.deriv[i] += rhs.deriv[i];
559 }
560 z
561 }
562}
563
564impl<const N: usize> Sub<Jet<N>> for Jet<N> {
565 type Output = Self;
566
567 fn sub(self, rhs: Jet<N>) -> Self::Output {
568 let mut z = self;
569 z.value -= rhs.value;
570 for i in 0..N {
571 z.deriv[i] -= rhs.deriv[i];
572 }
573 z
574 }
575}
576
577impl<const N: usize> Mul<Jet<N>> for Jet<N> {
578 type Output = Self;
579
580 /// Multiplication using normalized Taylor coefficient convolution:
581 /// $z_n = \sum_{k=0}^{n} c_k \cdot d_{n-k}$.
582 /// No binomial coefficients needed due to normalization convention.
583 fn mul(self, rhs: Jet<N>) -> Self::Output {
584 let mut z = Self::zero();
585 for n in 0..=N {
586 let mut s = 0.0f64;
587 for k in 0..=n {
588 s += self.coeff(k) * rhs.coeff(n - k);
589 }
590 z.set_coeff(n, s);
591 }
592 z
593 }
594}
595
596impl<const N: usize> Div<Jet<N>> for Jet<N> {
597 type Output = Self;
598
599 /// Division using normalized Taylor coefficient recurrence:
600 /// $z_0 = a_0 / b_0$,
601 /// $z_n = \frac{1}{b_0}\left(a_n - \sum_{k=1}^{n} b_k \, z_{n-k}\right)$
602 fn div(self, rhs: Jet<N>) -> Self::Output {
603 let b0 = rhs.coeff(0);
604 let inv_b0 = 1.0 / b0;
605 let mut z = Self::zero();
606 z.set_coeff(0, self.coeff(0) * inv_b0);
607 for n in 1..=N {
608 let mut s = 0.0f64;
609 for k in 1..=n {
610 s += rhs.coeff(k) * z.coeff(n - k);
611 }
612 z.set_coeff(n, inv_b0 * (self.coeff(n) - s));
613 }
614 z
615 }
616}
617
618// =============================================================================
619// Scalar arithmetic: Jet<N> op f64
620// =============================================================================
621
622impl<const N: usize> Add<f64> for Jet<N> {
623 type Output = Self;
624
625 fn add(self, rhs: f64) -> Self::Output {
626 let mut z = self;
627 z.value += rhs;
628 z
629 }
630}
631
632impl<const N: usize> Sub<f64> for Jet<N> {
633 type Output = Self;
634
635 fn sub(self, rhs: f64) -> Self::Output {
636 let mut z = self;
637 z.value -= rhs;
638 z
639 }
640}
641
642impl<const N: usize> Mul<f64> for Jet<N> {
643 type Output = Self;
644
645 fn mul(self, rhs: f64) -> Self::Output {
646 let mut z = self;
647 z.value *= rhs;
648 for d in z.deriv.iter_mut() {
649 *d *= rhs;
650 }
651 z
652 }
653}
654
655impl<const N: usize> Div<f64> for Jet<N> {
656 type Output = Self;
657
658 fn div(self, rhs: f64) -> Self::Output {
659 let inv = 1.0 / rhs;
660 let mut z = self;
661 z.value *= inv;
662 for d in z.deriv.iter_mut() {
663 *d *= inv;
664 }
665 z
666 }
667}
668
669// =============================================================================
670// Scalar arithmetic: f64 op Jet<N>
671// =============================================================================
672
673impl<const N: usize> Add<Jet<N>> for f64 {
674 type Output = Jet<N>;
675
676 fn add(self, rhs: Jet<N>) -> Self::Output {
677 let mut z = rhs;
678 z.value += self;
679 z
680 }
681}
682
683impl<const N: usize> Sub<Jet<N>> for f64 {
684 type Output = Jet<N>;
685
686 fn sub(self, rhs: Jet<N>) -> Self::Output {
687 let mut z = -rhs;
688 z.value += self;
689 z
690 }
691}
692
693impl<const N: usize> Mul<Jet<N>> for f64 {
694 type Output = Jet<N>;
695
696 fn mul(self, rhs: Jet<N>) -> Self::Output {
697 rhs * self
698 }
699}
700
701impl<const N: usize> Div<Jet<N>> for f64 {
702 type Output = Jet<N>;
703
704 fn div(self, rhs: Jet<N>) -> Self::Output {
705 Jet::<N>::constant(self) / rhs
706 }
707}
708
709// =============================================================================
710// ExpLogOps
711// =============================================================================
712
713impl<const N: usize> ExpLogOps for Jet<N> {
714 type Float = f64;
715
716 /// $\exp(a)$ using the normalized recurrence:
717 /// $z_0 = e^{a_0}$,
718 /// $z_n = \frac{1}{n}\sum_{k=1}^{n} k\, a_k\, z_{n-k}$
719 fn exp(&self) -> Self {
720 let mut z = Self::zero();
721 z.set_coeff(0, self.coeff(0).exp());
722 for n in 1..=N {
723 let mut s = 0.0f64;
724 for k in 1..=n {
725 s += (k as f64) * self.coeff(k) * z.coeff(n - k);
726 }
727 z.set_coeff(n, s / (n as f64));
728 }
729 z
730 }
731
732 /// $\ln(a)$ using the normalized recurrence:
733 /// $z_0 = \ln(a_0)$,
734 /// $z_n = \frac{1}{a_0}\left(a_n - \frac{1}{n}\sum_{k=1}^{n-1} k\, z_k\, a_{n-k}\right)$
735 fn ln(&self) -> Self {
736 let a0 = self.coeff(0);
737 let inv_a0 = 1.0 / a0;
738 let mut z = Self::zero();
739 z.set_coeff(0, a0.ln());
740 for n in 1..=N {
741 let mut s = 0.0f64;
742 for k in 1..n {
743 s += (k as f64) * z.coeff(k) * self.coeff(n - k);
744 }
745 z.set_coeff(n, inv_a0 * (self.coeff(n) - s / (n as f64)));
746 }
747 z
748 }
749
750 fn log(&self, base: f64) -> Self {
751 let ln_base = base.ln();
752 let z = self.ln();
753 let mut result = Self::zero();
754 result.set_coeff(0, z.coeff(0) / ln_base);
755 for k in 1..=N {
756 result.set_coeff(k, z.coeff(k) / ln_base);
757 }
758 result
759 }
760
761 fn log2(&self) -> Self {
762 self.log(2.0)
763 }
764
765 fn log10(&self) -> Self {
766 self.log(10.0)
767 }
768}
769
770// =============================================================================
771// PowOps
772// =============================================================================
773
774impl<const N: usize> PowOps for Jet<N> {
775 type Float = f64;
776
777 /// Integer power via repeated multiplication.
778 fn powi(&self, n: i32) -> Self {
779 if n == 0 {
780 return Self::constant(1.0);
781 }
782 let abs_n = n.unsigned_abs() as usize;
783 let mut result = *self;
784 for _ in 1..abs_n {
785 result = result * *self;
786 }
787 if n < 0 {
788 Self::constant(1.0) / result
789 } else {
790 result
791 }
792 }
793
794 /// Float power: exp(f * ln(self))
795 fn powf(&self, f: f64) -> Self {
796 (self.ln() * f).exp()
797 }
798
799 /// Jet power: exp(rhs * ln(self))
800 fn pow(&self, rhs: Self) -> Self {
801 (self.ln() * rhs).exp()
802 }
803
804 /// Square root using direct recurrence from $z^2 = a$:
805 /// $z_0 = \sqrt{a_0}$,
806 /// $z_n = \frac{1}{2\,z_0}\left(a_n - \sum_{k=1}^{n-1} z_k\, z_{n-k}\right)$
807 fn sqrt(&self) -> Self {
808 let a0 = self.coeff(0);
809 let z0 = a0.sqrt();
810 let inv_2z0 = 1.0 / (2.0 * z0);
811 let mut z = Self::zero();
812 z.set_coeff(0, z0);
813 for n in 1..=N {
814 let mut s = 0.0f64;
815 for k in 1..n {
816 s += z.coeff(k) * z.coeff(n - k);
817 }
818 z.set_coeff(n, inv_2z0 * (self.coeff(n) - s));
819 }
820 z
821 }
822}
823
824// =============================================================================
825// TrigOps
826// =============================================================================
827
828impl<const N: usize> TrigOps for Jet<N> {
829 /// $\sin$ and $\cos$ computed together via coupled normalized recurrence:
830 /// $s_0 = \sin(a_0)$, $c_0 = \cos(a_0)$,
831 /// $s_n = \frac{1}{n}\sum_{k=1}^{n} k\, a_k\, c_{n-k}$,
832 /// $c_n = -\frac{1}{n}\sum_{k=1}^{n} k\, a_k\, s_{n-k}$
833 fn sin_cos(&self) -> (Self, Self) {
834 let mut s = Self::zero();
835 let mut c = Self::zero();
836 s.set_coeff(0, self.coeff(0).sin());
837 c.set_coeff(0, self.coeff(0).cos());
838 for n in 1..=N {
839 let mut ss = 0.0f64;
840 let mut cs = 0.0f64;
841 for k in 1..=n {
842 let ka = (k as f64) * self.coeff(k);
843 ss += ka * c.coeff(n - k);
844 cs += ka * s.coeff(n - k);
845 }
846 s.set_coeff(n, ss / (n as f64));
847 c.set_coeff(n, -cs / (n as f64));
848 }
849 (s, c)
850 }
851
852 fn sin(&self) -> Self {
853 self.sin_cos().0
854 }
855
856 fn cos(&self) -> Self {
857 self.sin_cos().1
858 }
859
860 fn tan(&self) -> Self {
861 let (s, c) = self.sin_cos();
862 s / c
863 }
864
865 /// $\sinh$ and $\cosh$ via coupled normalized recurrence (same as $\sin/\cos$ but no negative on $\cosh$):
866 /// $s_n = \frac{1}{n}\sum_{k=1}^{n} k\, a_k\, c_{n-k}$,
867 /// $c_n = \frac{1}{n}\sum_{k=1}^{n} k\, a_k\, s_{n-k}$
868 fn sinh(&self) -> Self {
869 self.sinh_cosh().0
870 }
871
872 fn cosh(&self) -> Self {
873 self.sinh_cosh().1
874 }
875
876 fn tanh(&self) -> Self {
877 let (s, c) = self.sinh_cosh();
878 s / c
879 }
880
881 fn asin(&self) -> Self {
882 // q = 1/sqrt(1 - a^2)
883 let one = Self::constant(1.0);
884 let q = (one - self.powi(2)).sqrt();
885 let q_inv = one / q;
886 self.integrate_derivative(self.coeff(0).asin(), &q_inv)
887 }
888
889 fn acos(&self) -> Self {
890 // q = -1/sqrt(1 - a^2)
891 let one = Self::constant(1.0);
892 let q = (one - self.powi(2)).sqrt();
893 let q_inv = -(one / q);
894 self.integrate_derivative(self.coeff(0).acos(), &q_inv)
895 }
896
897 fn atan(&self) -> Self {
898 // q = 1/(1 + a^2)
899 let one = Self::constant(1.0);
900 let q = one / (one + self.powi(2));
901 self.integrate_derivative(self.coeff(0).atan(), &q)
902 }
903
904 fn asinh(&self) -> Self {
905 // q = 1/sqrt(1 + a^2)
906 let one = Self::constant(1.0);
907 let q_inv = (one + self.powi(2)).sqrt();
908 let q = one / q_inv;
909 self.integrate_derivative(self.coeff(0).asinh(), &q)
910 }
911
912 fn acosh(&self) -> Self {
913 // q = 1/sqrt(a^2 - 1)
914 let one = Self::constant(1.0);
915 let q_inv = (self.powi(2) - one).sqrt();
916 let q = one / q_inv;
917 self.integrate_derivative(self.coeff(0).acosh(), &q)
918 }
919
920 fn atanh(&self) -> Self {
921 // q = 1/(1 - a^2)
922 let one = Self::constant(1.0);
923 let q = one / (one - self.powi(2));
924 self.integrate_derivative(self.coeff(0).atanh(), &q)
925 }
926}
927
928impl<const N: usize> Jet<N> {
929 /// Compute $\sinh$ and $\cosh$ together via the coupled normalized recurrence.
930 pub fn sinh_cosh(&self) -> (Self, Self) {
931 let mut s = Self::zero();
932 let mut c = Self::zero();
933 s.set_coeff(0, self.coeff(0).sinh());
934 c.set_coeff(0, self.coeff(0).cosh());
935 for n in 1..=N {
936 let mut ss = 0.0f64;
937 let mut cs = 0.0f64;
938 for k in 1..=n {
939 let ka = (k as f64) * self.coeff(k);
940 ss += ka * c.coeff(n - k);
941 cs += ka * s.coeff(n - k);
942 }
943 s.set_coeff(n, ss / (n as f64));
944 c.set_coeff(n, cs / (n as f64)); // NO negative for cosh
945 }
946 (s, c)
947 }
948
949 /// Integrate using derivative jet: used by inverse trig functions.
950 /// Given $z'(a)$ encoded as a Jet `q`, compute $z$ coefficients by:
951 /// $z_0 = z_0$,
952 /// $z_n = \frac{1}{n}\sum_{k=1}^{n} k\, a_k\, q_{n-k}$
953 fn integrate_derivative(&self, z0: f64, q: &Self) -> Self {
954 let mut z = Self::zero();
955 z.set_coeff(0, z0);
956 for n in 1..=N {
957 let mut s = 0.0f64;
958 for k in 1..=n {
959 s += (k as f64) * self.coeff(k) * q.coeff(n - k);
960 }
961 z.set_coeff(n, s / (n as f64));
962 }
963 z
964 }
965}
966
967// =============================================================================
968// ADFn — lift functions over Jet<2> to work at f64 or Jet level
969// =============================================================================
970
971/// Generic AD function wrapper.
972///
973/// Lifts a function `F: Fn(Jet<2>) -> Jet<2>` to operate at multiple levels:
974/// - `call_stable(f64)` → `f64`: evaluate function value, first derivative, or second derivative
975/// - `call_stable(Jet<2>)` → `Jet<2>`: pass through
976///
977/// For vector functions, also lifts `F: Fn(Vec<Jet<1>>) -> Vec<Jet<1>>`.
978///
979/// # Examples
980/// ```
981/// use peroxide::fuga::*;
982///
983/// let f_ad = ADFn::new(|x: Jet<2>| x.powi(2));
984///
985/// // Value: f(3) = 9
986/// assert_eq!(f_ad.call_stable(3.0), 9.0);
987///
988/// // Gradient: f'(3) = 6 (2*3)
989/// let df = f_ad.grad();
990/// assert_eq!(df.call_stable(3.0), 6.0);
991///
992/// // Hessian: f''(3) = 2
993/// let ddf = df.grad();
994/// assert_eq!(ddf.call_stable(3.0), 2.0);
995/// ```
996pub struct ADFn<F> {
997 f: Box<F>,
998 grad_level: usize,
999}
1000
1001impl<F: Clone> ADFn<F> {
1002 /// Create a new `ADFn` wrapping function `f` at gradient level 0 (function evaluation).
1003 pub fn new(f: F) -> Self {
1004 Self {
1005 f: Box::new(f),
1006 grad_level: 0,
1007 }
1008 }
1009
1010 /// Produce the gradient version of this function (increments grad_level by 1).
1011 /// Panics if grad_level >= 2.
1012 pub fn grad(&self) -> Self {
1013 assert!(self.grad_level < 2, "Higher order AD is not allowed");
1014 ADFn {
1015 f: self.f.clone(),
1016 grad_level: self.grad_level + 1,
1017 }
1018 }
1019}
1020
1021/// Scalar version: F works with `Jet<2>`, target is `f64`.
1022impl<F: Fn(Jet<2>) -> Jet<2>> StableFn<f64> for ADFn<F> {
1023 type Output = f64;
1024
1025 fn call_stable(&self, target: f64) -> f64 {
1026 match self.grad_level {
1027 0 => (self.f)(Jet::<2>::constant(target)).value(),
1028 1 => (self.f)(Jet::<2>::new(target, [1.0, 0.0])).dx(),
1029 2 => (self.f)(Jet::<2>::new(target, [1.0, 0.0])).ddx(),
1030 _ => unreachable!("grad_level > 2 is not allowed"),
1031 }
1032 }
1033}
1034
1035/// Scalar version: F works with `Jet<2>`, target is `Jet<2>`.
1036impl<F: Fn(Jet<2>) -> Jet<2>> StableFn<Jet<2>> for ADFn<F> {
1037 type Output = Jet<2>;
1038
1039 fn call_stable(&self, target: Jet<2>) -> Jet<2> {
1040 (self.f)(target)
1041 }
1042}
1043
1044/// Vector version: F works with `Vec<Jet<1>>`, target is `Vec<f64>`.
1045impl<F: Fn(Vec<Jet<1>>) -> Vec<Jet<1>>> StableFn<Vec<f64>> for ADFn<F> {
1046 type Output = Vec<f64>;
1047
1048 fn call_stable(&self, target: Vec<f64>) -> Vec<f64> {
1049 (self.f)(target.into_iter().map(Jet::<1>::constant).collect())
1050 .into_iter()
1051 .map(|j| j.value())
1052 .collect()
1053 }
1054}
1055
1056/// Vector version: F works with `Vec<Jet<1>>`, target is `Vec<Jet<1>>`.
1057impl<F: Fn(Vec<Jet<1>>) -> Vec<Jet<1>>> StableFn<Vec<Jet<1>>> for ADFn<F> {
1058 type Output = Vec<Jet<1>>;
1059
1060 fn call_stable(&self, target: Vec<Jet<1>>) -> Vec<Jet<1>> {
1061 (self.f)(target)
1062 }
1063}
1064
1065/// Vector version: F works with `&Vec<Jet<1>>`, target is `&Vec<f64>`.
1066impl<'a, F: Fn(&Vec<Jet<1>>) -> Vec<Jet<1>>> StableFn<&'a Vec<f64>> for ADFn<F> {
1067 type Output = Vec<f64>;
1068
1069 fn call_stable(&self, target: &'a Vec<f64>) -> Vec<f64> {
1070 let jet_target: Vec<Jet<1>> = target.iter().map(|&x| Jet::<1>::constant(x)).collect();
1071 (self.f)(&jet_target)
1072 .into_iter()
1073 .map(|j| j.value())
1074 .collect()
1075 }
1076}
1077
1078/// Vector version: F works with `&Vec<Jet<1>>`, target is `&Vec<Jet<1>>`.
1079impl<'a, F: Fn(&Vec<Jet<1>>) -> Vec<Jet<1>>> StableFn<&'a Vec<Jet<1>>> for ADFn<F> {
1080 type Output = Vec<Jet<1>>;
1081
1082 fn call_stable(&self, target: &'a Vec<Jet<1>>) -> Vec<Jet<1>> {
1083 (self.f)(target)
1084 }
1085}
1086
1087// =============================================================================
1088// JetVec trait (replaces ADVec)
1089// =============================================================================
1090
1091/// Trait for converting between `Vec<f64>` and `Vec<Jet<1>>`.
1092pub trait JetVec {
1093 fn to_jet_vec(&self) -> Vec<Jet<1>>;
1094 fn to_f64_vec(&self) -> Vec<f64>;
1095}
1096
1097impl JetVec for Vec<f64> {
1098 fn to_jet_vec(&self) -> Vec<Jet<1>> {
1099 self.iter().map(|&x| Jet::<1>::constant(x)).collect()
1100 }
1101
1102 fn to_f64_vec(&self) -> Vec<f64> {
1103 self.clone()
1104 }
1105}
1106
1107impl JetVec for Vec<Jet<1>> {
1108 fn to_jet_vec(&self) -> Vec<Jet<1>> {
1109 self.clone()
1110 }
1111
1112 fn to_f64_vec(&self) -> Vec<f64> {
1113 self.iter().map(|j| j.value()).collect()
1114 }
1115}
1116
1117// =============================================================================
1118// FPVector, Vector, VecOps for Vec<Jet<1>>
1119// =============================================================================
1120
1121impl FPVector for Vec<Jet<1>> {
1122 type Scalar = Jet<1>;
1123
1124 fn fmap<F>(&self, f: F) -> Self
1125 where
1126 F: Fn(Self::Scalar) -> Self::Scalar,
1127 {
1128 self.iter().map(|&x| f(x)).collect()
1129 }
1130
1131 fn reduce<F, T>(&self, init: T, f: F) -> Self::Scalar
1132 where
1133 F: Fn(Self::Scalar, Self::Scalar) -> Self::Scalar,
1134 T: Into<Self::Scalar>,
1135 {
1136 self.iter().fold(init.into(), |acc, &x| f(acc, x))
1137 }
1138
1139 fn zip_with<F>(&self, f: F, other: &Self) -> Self
1140 where
1141 F: Fn(Self::Scalar, Self::Scalar) -> Self::Scalar,
1142 {
1143 self.iter()
1144 .zip(other.iter())
1145 .map(|(&x, &y)| f(x, y))
1146 .collect()
1147 }
1148
1149 fn filter<F>(&self, f: F) -> Self
1150 where
1151 F: Fn(Self::Scalar) -> bool,
1152 {
1153 self.iter().filter(|&&x| f(x)).cloned().collect()
1154 }
1155
1156 fn take(&self, n: usize) -> Self {
1157 self.iter().take(n).cloned().collect()
1158 }
1159
1160 fn skip(&self, n: usize) -> Self {
1161 self.iter().skip(n).cloned().collect()
1162 }
1163
1164 fn sum(&self) -> Self::Scalar {
1165 if self.is_empty() {
1166 return Jet::<1>::constant(0.0);
1167 }
1168 let s = self[0];
1169 self.reduce(s, |x, y| x + y)
1170 }
1171
1172 fn prod(&self) -> Self::Scalar {
1173 if self.is_empty() {
1174 return Jet::<1>::constant(1.0);
1175 }
1176 let s = self[0];
1177 self.reduce(s, |x, y| x * y)
1178 }
1179}
1180
1181impl Vector for Vec<Jet<1>> {
1182 type Scalar = Jet<1>;
1183
1184 fn add_vec(&self, rhs: &Self) -> Self {
1185 self.add_v(rhs)
1186 }
1187
1188 fn sub_vec(&self, rhs: &Self) -> Self {
1189 self.sub_v(rhs)
1190 }
1191
1192 fn mul_scalar(&self, rhs: Self::Scalar) -> Self {
1193 self.mul_s(rhs)
1194 }
1195}
1196
1197impl VecOps for Vec<Jet<1>> {}
1198
1199// =============================================================================
1200// Backward compatibility: AD type aliases and constructors
1201// =============================================================================
1202// Keep the old public API so existing code that uses AD, AD0, AD1, AD2, ADVec, ADFn
1203// continues to compile. AD is now an alias for Jet<2> (the highest order used in ADFn).
1204// AD0/AD1/AD2 are re-exported constructor functions.
1205
1206/// Backward compatibility alias: `AD` is now `Jet<2>`.
1207///
1208/// For new code, prefer `Dual = Jet<1>` or `HyperDual = Jet<2>` directly.
1209pub type AD = Jet<2>;
1210
1211/// Backward compatibility constructor: `AD0(x)` creates a zero-derivative `Jet<2>` constant.
1212#[inline]
1213#[allow(non_snake_case)]
1214pub fn AD0(x: f64) -> Jet<2> {
1215 Jet::<2>::constant(x)
1216}
1217
1218/// Backward compatibility constructor: `AD1(x, dx)` creates a `Jet<2>` with given first derivative.
1219#[inline]
1220#[allow(non_snake_case)]
1221pub fn AD1(x: f64, dx: f64) -> Jet<2> {
1222 Jet::<2>::new(x, [dx, 0.0])
1223}
1224
1225/// Backward compatibility constructor: `AD2(x, dx, ddx)` creates a `Jet<2>` with given derivatives.
1226#[inline]
1227#[allow(non_snake_case)]
1228pub fn AD2(x: f64, dx: f64, ddx: f64) -> Jet<2> {
1229 Jet::<2>::new(x, [dx, ddx / 2.0])
1230}
1231
1232/// Backward compatibility trait: provides `to_ad_vec` and `to_f64_vec` on vector types.
1233///
1234/// Extends `JetVec` with the `to_ad_vec` method for converting to `Vec<AD>` (= `Vec<Jet<2>>`).
1235pub trait ADVec: JetVec {
1236 fn to_ad_vec(&self) -> Vec<AD>;
1237
1238 /// Convert to a `Vec<f64>` by extracting the value of each jet.
1239 /// (Delegates to `JetVec::to_f64_vec` — provided here so the trait is self-contained.)
1240 fn to_f64_vec_compat(&self) -> Vec<f64> {
1241 self.to_f64_vec()
1242 }
1243}
1244
1245impl ADVec for Vec<f64> {
1246 fn to_ad_vec(&self) -> Vec<AD> {
1247 self.iter().map(|&x| Jet::<2>::constant(x)).collect()
1248 }
1249}
1250
1251impl ADVec for Vec<AD> {
1252 fn to_ad_vec(&self) -> Vec<AD> {
1253 self.clone()
1254 }
1255}
1256
1257impl JetVec for Vec<AD> {
1258 fn to_jet_vec(&self) -> Vec<Jet<1>> {
1259 self.iter()
1260 .map(|j| Jet::<1>::new(j.value(), [j.dx()]))
1261 .collect()
1262 }
1263
1264 fn to_f64_vec(&self) -> Vec<f64> {
1265 self.iter().map(|j| j.value()).collect()
1266 }
1267}
1268
1269// FPVector, Vector, VecOps for Vec<AD> (= Vec<Jet<2>>)
1270impl FPVector for Vec<AD> {
1271 type Scalar = AD;
1272
1273 fn fmap<F>(&self, f: F) -> Self
1274 where
1275 F: Fn(Self::Scalar) -> Self::Scalar,
1276 {
1277 self.iter().map(|&x| f(x)).collect()
1278 }
1279
1280 fn reduce<F, T>(&self, init: T, f: F) -> Self::Scalar
1281 where
1282 F: Fn(Self::Scalar, Self::Scalar) -> Self::Scalar,
1283 T: Into<Self::Scalar>,
1284 {
1285 self.iter().fold(init.into(), |acc, &x| f(acc, x))
1286 }
1287
1288 fn zip_with<F>(&self, f: F, other: &Self) -> Self
1289 where
1290 F: Fn(Self::Scalar, Self::Scalar) -> Self::Scalar,
1291 {
1292 self.iter()
1293 .zip(other.iter())
1294 .map(|(&x, &y)| f(x, y))
1295 .collect()
1296 }
1297
1298 fn filter<F>(&self, f: F) -> Self
1299 where
1300 F: Fn(Self::Scalar) -> bool,
1301 {
1302 self.iter().filter(|&&x| f(x)).cloned().collect()
1303 }
1304
1305 fn take(&self, n: usize) -> Self {
1306 self.iter().take(n).cloned().collect()
1307 }
1308
1309 fn skip(&self, n: usize) -> Self {
1310 self.iter().skip(n).cloned().collect()
1311 }
1312
1313 fn sum(&self) -> Self::Scalar {
1314 if self.is_empty() {
1315 return Jet::<2>::constant(0.0);
1316 }
1317 let s = self[0];
1318 self.reduce(s, |x, y| x + y)
1319 }
1320
1321 fn prod(&self) -> Self::Scalar {
1322 if self.is_empty() {
1323 return Jet::<2>::constant(1.0);
1324 }
1325 let s = self[0];
1326 self.reduce(s, |x, y| x * y)
1327 }
1328}
1329
1330impl Vector for Vec<AD> {
1331 type Scalar = AD;
1332
1333 fn add_vec(&self, rhs: &Self) -> Self {
1334 self.add_v(rhs)
1335 }
1336
1337 fn sub_vec(&self, rhs: &Self) -> Self {
1338 self.sub_v(rhs)
1339 }
1340
1341 fn mul_scalar(&self, rhs: Self::Scalar) -> Self {
1342 self.mul_s(rhs)
1343 }
1344}
1345
1346impl VecOps for Vec<AD> {}
